54000 Liters Tri-axle LPG Tank Trailers
|Payment Type:||L/C,T/T,D/P,Paypal,Money Gram,Western Union|
|Terms of Trade:||FOB,CFR,CIF,FCA,CPT|
|Min. Order:||1 Bag/Bags|
|Delivery Time:||30 Days|
|Productivity:||50 sets per month|
|Place of Origin:||Suizhou,Hubei ,China|
|Supply Ability:||600 sets per year|
Model No.: DN2450
1. GB150-2011《Pressure Vessel》
2. GB/T19905-2005《Liquefied Gas Tanker Truck》
3. Available in 10,600 gallon(250 or 265 PSI) and 11,600 gallon (250 PSI) sizes. Custom sizes are also available.
Curb weight: 16320 kg
Maximum Allowable Loading Weight: 22680 kg
Total Weight: 39000 kg
Front/Rear Overhang: -/1540 mm
Approach angle/Departure angle: -/18 °
Tire Size: 10.00-20 Nylon Tire
Design Service Life: 10 years
External Dimensions(Length*Width*Height): 12280*2500*3965 mm
Maximum Speed: 90 km/h
Design Pressure: 16.1 Bar
Volume: 54,000 litres
Filling Coefficient: 420 kg/m3
Host Material: Q345R
Design Thickness of Cylinder: 11.71 mm
Design Thickness of Head: 11.69 mm
Head Shape: spherical
Diameter*Thickness*Length: 2450*12*11910 mm
Working Thermometer: -20℃~50℃
Heat Treatment: 620 ℃ annealing
Safety Accessories: Safety Valve, Level Meter, Pressure Gauge, Thermometer, Cut-off Valve, Emergency Shut-off Valve
Main characteristic of LPG Tank Trailers
Gauges: 4" MEC dial float gauge, 0-400 pressure gauge
Level gauges: 83%, 85%, 87%, and 90%
4S/2M & roll stability brake system with indicator light
Truck-Lite LED Lighting package
Hose Storage Tubes both sides
Pictures of LPG Tank Trailers

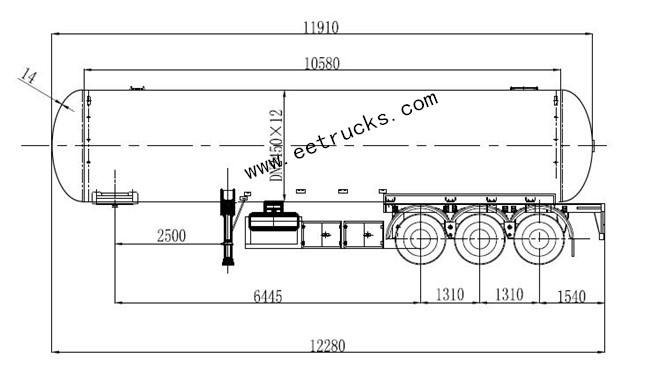

54000 Liters LPG Tank Trailers Drawing:
There are kinds of production lines and technical staff in our company, we can also manufacture the following products:
1. LPG Skid Mounted Station
2. LPG Gas Cylinder Filling Trucks
3. Tow Trucks
4. LED Advertising Trucks
5. Chemical Liquid Trucks
6. Truck Cranes
7. Concrete Mixer Trucks
8. Garbage Compactor Trucks
We Xiagong Chusheng Special Purpose Vehicle Co.Ltd. is the leader vehicle manufacturer and exporter in China, CSC TRUCK can research and develop independently. We specializes in manufacturing pressure vessels, LPG Bullet Tanks, Anhydrous Ammonia Bullet Tanks, LPG Tank Trucks, LPG Transport Trailers, Bulk LPG Tank Trailers, LPG Skid Mounted Stations, Heavy Duty Crane Trucks, Dongfeng Tow Trucks, Dongfeng Fire Fighting Trucks, Fuel Tank Semi Trailers, Bulk Powder Tank Trucks, LED Mobile Advertising Trucks, Refrigerated Van Trucks.
Frequently Asked Question
1. Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of pressure vessels such as LPG Storage Tanks, LPG Tank Trucks, LPG Skid Mounted Station. We can provide the product that meet with your personalized demand.
2. Could your company totally customize products for me?
We can provide the customized-designing product meeting with your demand.
3. How about the after-sale service?
Our technical staff can provide you the technical support to guide you how to use the product, and we take full responsibility during the design life of every product.
